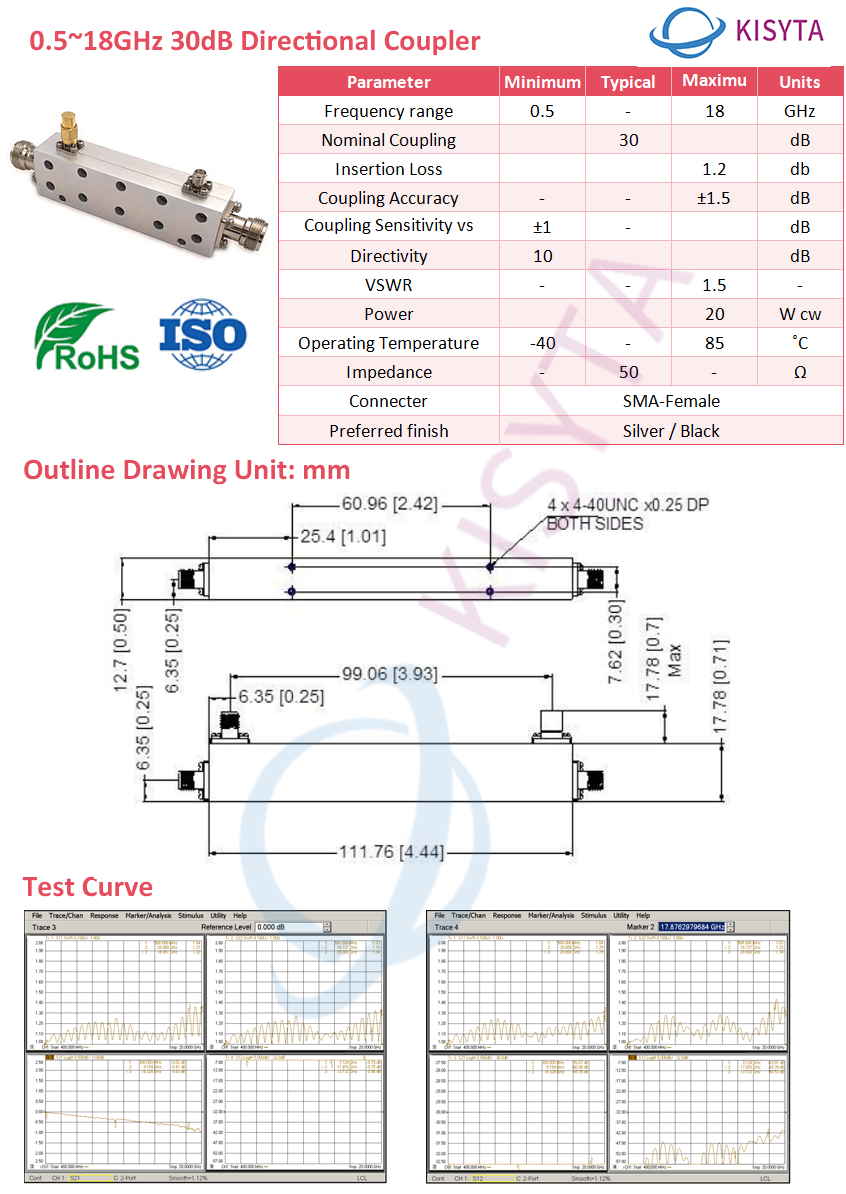

0.5~18GHz 30dB Directional Coupler
Part Number: KDC30-005180SF
Electrical Specifications (TA = 25℃)
Parameter | Minimum | Typical | Maximum | Units |
Frequency range | 0.5 | - | 18 | GHz |
Nominal Coupling |
| 30 |
| dB |
Insertion Loss |
|
| 1.2 | db |
Coupling Accuracy | - | - | ±1.5 | dB |
Coupling Sensitivity to Frequency | ±1 | - |
| dB |
Directivity | 10 |
|
| dB |
VSWR | - | - | 1.5 | - |
Power |
|
| 20 | W cw |
Operating Temperature | -40 | - | 85 | ˚C |
Impedance | - | 50 | - | Ω |
Connector | SMA-Female | |||
Remarks:
1.Include Theoretical loss 0.004dB
2.Power rating is for load VSWR better than 1.20:1
Environmental Specifications | |
Operational Temperature | -40ºC~+85ºC |
Storage Temperature | -50ºC~+95ºC |
Vibration | 25gRMS (15 degrees 2KHz) endurance, 1 hour per axis |
Humidity | 100% RH at 35ºc, 95%RH at 40ºc |
Shock | 20G for 11msec half sine wave,3 axis both directions |
Mechanical Specifications | |
Housing | Aluminum |
Connector | Passivated or stainless steel |
Weight | 0.2kg |
Rohs | Compliant |

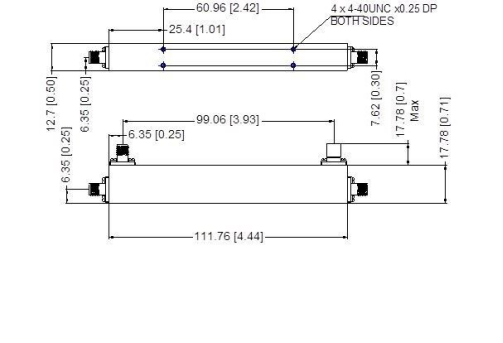

Outline Drawing:
All Dimensions in mm
Outline Tolerances ± 0.5(0.02)
Mounting Holes Tolerances ±0.2(0.008)
All Connectors: SMA-Female
