0.5~26.5GHz 20dB Directional Coupler
Part Number: KDC20-005265SF

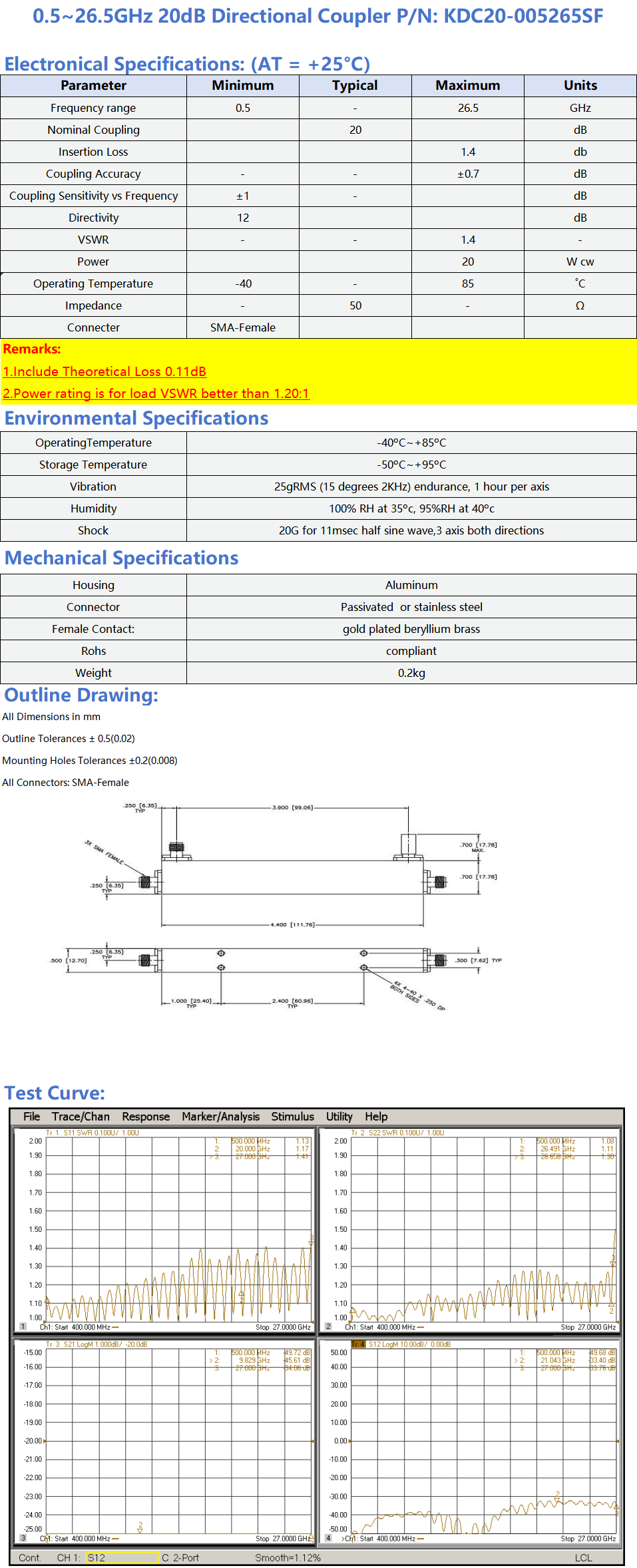

Electrical Specifications (TA = 25℃)
Parameter | Minimum | Typical | Maximum | Units |
Frequency range | 0.5 |
| 26.5 | GHz |
Nominal Coupling |
| 20 |
| dB |
Coupling Accuracy |
|
| ±0.7 | dB |
Coupling Sensitivity to Frequency |
| ±0.1 |
| dB |
Insertion Loss |
|
| 1.4 | dB |
Directivity |
| 12 |
| dB |
VSWR |
|
| 1.4 | - |
Power |
|
| 30 | W |
Operating Temperature Range | -40 |
| 85 | ˚C |
Impedance | - | 50 | - | Ω |

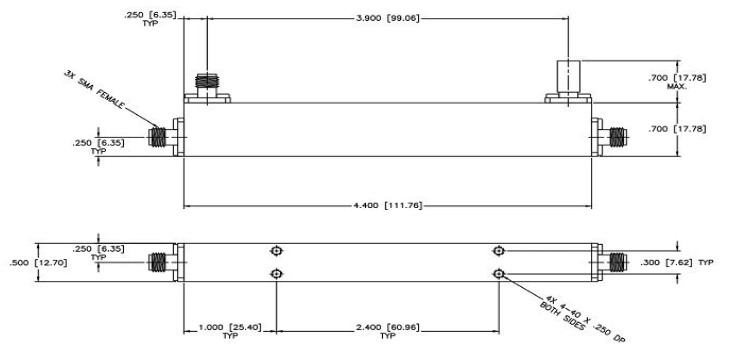

Outline Drawing:
All Dimensions in mm
All Connectors: 2.92mm-Female
