2~18GHz 10W Power Amplifier KPA020180-10W
Characteristic:
n Ultra wideband
n low noise
n Miniaturization
n high reliability
n Extensive environmental adaptability
0.1GHz to 110GHz frequency coverage, broadband power amplifier 60 dBM, 60dB gain and SMA interface
Electrical Specifications (TA = 25℃)
Item | Min | Typical | Max | Unit |
2 |
| 18 | GHz | |
Gain |
| 45 |
| db |
Gain Flatness |
| ±3.5 |
| dB |
Output Power (Psat) |
| 40 |
| dBm |
Noise Figure |
| 7 |
| dB |
Spurious |
| -50 |
| dBc |
Input VSWR |
| 1.8 |
| Ratio |
Output VSWR |
| 2.5 |
| Ratio |
Operating DC Voltage |
| 28 |
| Volt |
Operating DC Current |
| 3 | Start 12A | A |
| Operating Temperature | -20 | +40 | C | |
| Output Connector | SMA-F | |||
| Input | SMA-F | |||
| Max Power | -5 | dBm |

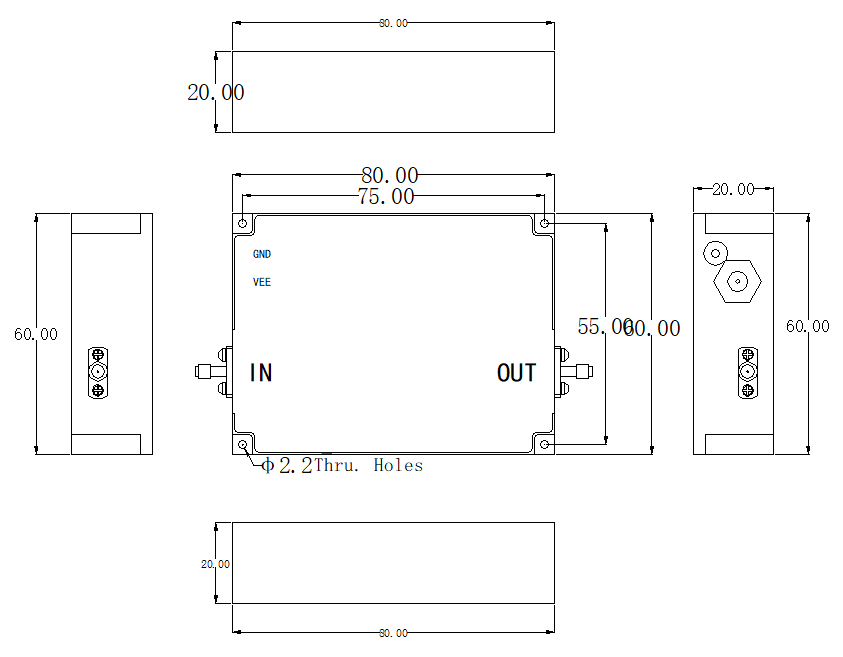

Dimension (unit: mm tolerance ± 0.3mm)
