Part No: KFL093095-SB
Stop band range:9300-9500Mhz
Insertion Loss in pass band:≤2.0dB
VSWR: ≤1.5:1
Stop Band attenuation: ≥40dB
Band Pass: 8200-9200Mhz&9600-14000Mhz
Max.Power:10w
Connectors: SMA-Female（50Ω）
Surface Finish:Black
Part No: | KFL093095-SB |
Stop band range: | 9300-9500Mhz |
Insertion Loss in pass band: | ≤2.0dB |
VSWR: | ≤1.5:1 |
Stop Band attenuation: | ≥40dB |
Band Pass: | 8200-9200Mhz&9600-14000Mhz |
Max.Power: | 10W |
Connector: | SMA-Female（50Ω） |
Surface Finish: | Black |

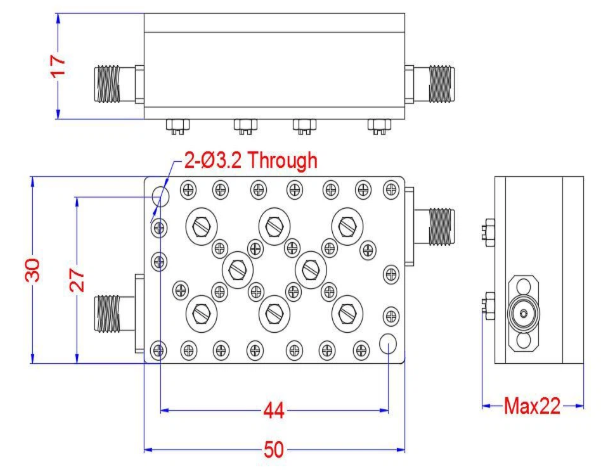

Outline Drawing:
All Dimensions in mm
All Connectors:SMA-F
Tolerance ：±0.3mm

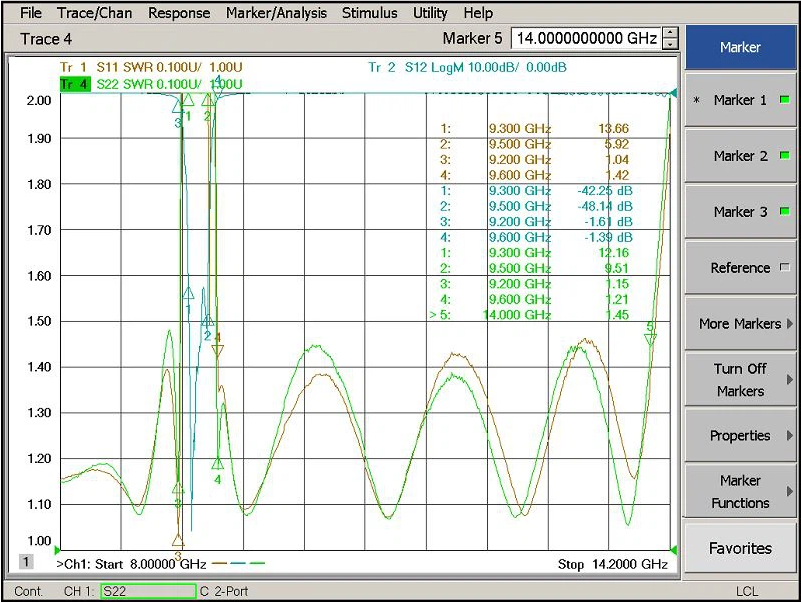

Test Curve:
