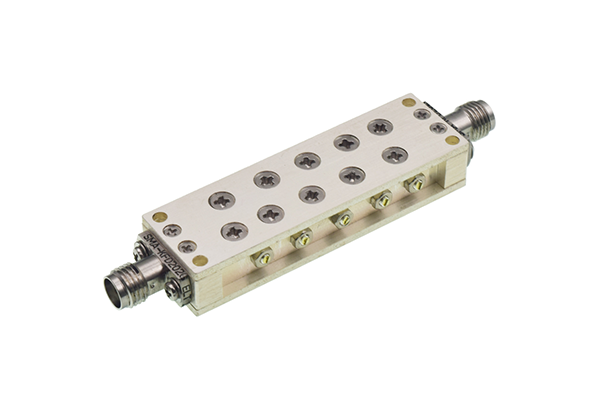

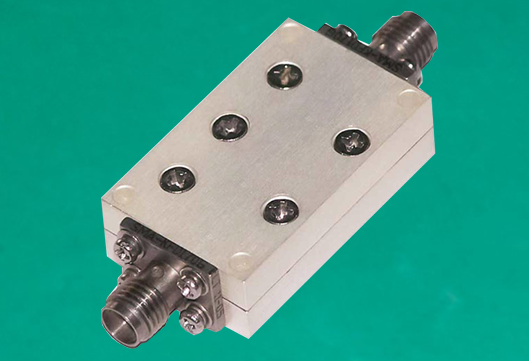

RF Cavity / LC Filter
This series filter includes bandpass, lowpass, highpass, stopband, notch cavity and LC. The advantage is Low Insertion Loss，High Isolation,Better Phase Balance, Temperature Stabilized, Holds Specifications At Thermal Extremes, High quality, Low price, Fast delivery.
P/N | Freq. Range | I.L | VSWR | Rejection |
MHz | dB Max | Max |
Highpass Filter |
KHPF-1-100MHz-LC | 1-100 | 1.5 | 1.3 | 40dB@DC-0.8MHz |
KHPF-10-200MHz-LC | 10-200 | 1.5 | 1.3 | 40dB@DC-8MHz |
KHPF-40-400MHz-LC | 40-400 | 1.5 | 1.3 | 40dB@DC-32MHz |
KHPF-50-500MHz-LC | 50-500 | 1.5 | 1.3 | 40dB@DC-40MHz |
KHPF-60-600MHz-LC | 60-600 | 1.5 | 1.3 | 40dB@DC-48MHz |
KHPF-70-700MHz-LC | 70-700 | 1.5 | 1.4 | 40dB@DC-56MHz |
KHPF-80-800MHz-LC | 80-800 | 1.5 | 1.4 | 40dB@DC-64MHz |
KHPF-90-900MHz-LC | 90-900 | 1.5 | 1.4 | 40dB@DC-72MHz |
KHPF-10-1000MHz-LC | 100-1000 | 1.5 | 1.4 | 40dB@DC-80MHz |
KHPF-200-1500MHz-LC | 200-1500 | 1.5 | 1.4 | 40dB@DC-160MHz |
KHPF-500-2000MHz-LC | 500-2000 | 1.5 | 1.5 | 40dB@DC-400MHz |
KHPF-825-3000MHz-LC | 825-3000 | 2 | 1.5 | 40dB@DC-660MHz |
KHPF-1600-4000MHz-LC | 1600-4000 | 2 | 1.5 | 40dB@DC-1280MHz |
KHPF-2000-5000MHz-LC | 2000-5000 | 2 | 1.5 | 40dB@DC-1600MHz |
KHPF-3000-6000MHz-LC | 3000-6000 | 2 | 1.5 | 40dB@DC-2400MHz |
KHPF-3300-6000MHz-LC | 3300-6000 | 2 | 1.5 | 40dB@DC-2640MHz |
KHPF-3700-7000MHz-LC | 3700-7000 | 2 | 1.5 | 40dB@DC-3000MHz |
KHPF-4200-8000MHz-LC | 4200-8000 | 2 | 1.5 | 40dB@DC-3360MHz |
KHPF-5100-10000MHz-LC | 5100-10000 | 2 | 1.6 | 40dB@DC-4100MHz |
KHPF-2-18GHz-LC | 2-18GHz | 3 | 2 | 30dB@DC-1500MHz |
KHPF-3-13GHz-LC | 3-13GHz | 3 | 2 | 30dB@DC-2400MHz |
Bandpass Filter |
KBF-44-56MHz-LC | 44-56 | 5 | 1.5 | 50dB@30MHz; 50dB@70-4000MHz |
KBF-50-70MHz-LC | 50-70 | 2 | 1.5 | 50dB@10-30MHz; 50dB@90-500MHz |
KBF-108-118MHz-LC | 108-118 | 5 | 1.5 | 50dB@10-91MHz; 50dB@138-300MHz |
KBF-100-140MHz-LC | 100-140 | 3.5 | 1.5 | 60dB@DC-80MHz; 60dB@160MHz |
KBF-138-142MHz-LC | 138-142 | 3.5 | 1.5 | 40dB@f0-18MHz; 40dB@f0+18MHz |
KBF-175-225MHz-LC | 175-225 | 2 | 1.5 | 60dB@f-80MHz; 60dB@f+80MHz |
KBF-280-320MHz-LC | 280-320 | 3 | 1.5 | 40dB@DC-240MHz; 40dB@360MHz |
KBF-340-360MHz-LC | 340-360 | 3 | 1.5 | 40dB@DC-300MHz; 40dB@400MHz |
KBF-360-380MHz-LC | 360-380 | 3 | 1.5 | 40dB@DC-320MHz; 40dB@420MHz |
KBF-389-411MHz-LC | 389-411 | 6 | 1.5 | 55dBc@0-345MHz; 40dBc@455MHz |
KBF-420-450MHz-LC | 420-450 | 4 | 1.5 | 40dB@DC-360MHz; 40dB@500MHz |
KBF-400-550MHz-LC | 400-550 | 2.5 | 1.5 | 40dB@300-350MHz; 40dB@600-650MHz |
KBF-468-532MHz-LC | 468-532 | 3 | 1.5 | 30dBc@374.4MHz; 50dBc@650MHz |
KBF-400-700MHz-LC | 400-700 | 3 | 1.5 | 45dBc@f0-200MHz |
KBF-590-610MHz-LC | 590-610 | 4 | 1.5 | 50dB@120-488MHz; 50dB@708MHz |
KBF-670-730MHz-LC | 670-730 | 2 | 1.5 | 50dB@580MHz; 50dB@820MHz |
KBF-770-790MHz-LC | 770-790 | 4.5 | 1.5 | 50dBc@f0-100MHz; 50dBc@f0+80MHz |
KBF-1002.5-1057.5MHz-LC | 1002.5-1057.5 | 3 | 1.5 | 60dB@200MHz |
KBF-956-1218MHz-LC | 956-1218 | 3 | 1.5 | 40dB@563-1611MHz; 40dB@563-1611MHz |
KBF-1062.5-1117Hz-LC | 1062.5-1117.5 | 3 | 1.5 | 60dB@200MHz; 50dB@1230-1370MHz |
KBF-1500-1700MHz-LC | 1500-1700 | 3 | 1.5 | 60dB@f0-450MHz; 60dB@f0+450MHz |
KBF-1300-2400MHz-LC | 1300-2400 | 2 | 1.6 | 15dBc@300-1000MHz ; 15dBc@2600-3000MHz |
KBF-1889-1911MHz-LC | 1889-1911 | 2.5 | 1.5 | 55dBc@0-1515MHz; 55dBc@2285-5000MHz |
KBF-2045-2075MHz-LC | 2045-2075 | 5 | 1.5 | 40dB@f0-120MHz; 40dB@f0+120MHz |
KBF-2000-2200MHz-LC | 2000-2200 | 3 | 1.5 | 50dB@1500MHz; 50dB@2600MHz |
KBF-2230-2410MHz-LC | 2230-2410 | 3 | 1.5 | 30dB@2000MHz; 30dB@2640MHz |
KBF-2000-3000MHz-LC | 2000-3000 | 2 | 1.5 | 40dBc@1500MHz |
KBF-2300-3100MHz-LC | 2300-3100 | 1.5 | 1.6 | 55dBc@DC-1800MHz; 35dBc@2100MHz |
KBF-2000-3500MHz-LC | 2000-3500 | 1.5 | 1.8 | 45dBc@f0-1500MHz ; 30dB@4000MHz |
KBF-2600-2900MHz-LC | 2600-2900 | 6 | 1.5 | 20dB@2200-2500MHz; 45dB@3000MHz |
KBF-2400-3400MHz-LC | 2400-3400 | 1.5 | 1.4 | 40dB@20-1700MHz; 40dB@4000-13000MHz |
KBF-2700-3100MHz-LC | 2700-3100 | 2 | 1.5 | 40dB@2200MHz; 40dB@3500MHz |
KBF-2800-3100MHz-LC | 2800-3100 | 6 | 1.5 | 20dB@2400-2700MHz; 45dB@3200MHz |
KBF-3000-3300MHz-LC | 3000-3300 | 6 | 1.5 | 20dB@2600-2900MHz; 45dB@3400MHz |
KBF-3400-3800MHz-LC | 3400-3800 | 3 | 1.5 | 40dB@f0-350MHz; 40dB@f0+350MHz |
KBF-3200-4200MHz-LC | 3200-4200 | 3 | 1.5 | 50dB@2700MHz; 50dB@4700MHz |
KBF-3800-4000MHz-LC | 3800-4000 | 3 | 1.5 | 40dB@f0-350MHz; 40dB@f0+350MHz |
KBF-4500-1900MHz-LC | 4500-4900 | 4 | 1.5 | 40dB@4300MHz; 40dB@5100MHz |
Lowpass Filter |
KLPF-DC-1MHz-LC | DC-1 | 1.5 | 1.3 | 40dB@1.2MHz |
KLPF-DC-2MHz-LC | DC-2 | 1.5 | 1.3 | 40dB@2.4MHz |
KLPF-DC-3MHz-LC | DC-3 | 1.5 | 1.3 | 40dB@3.6MHz |
KLPF-DC-5MHz-LC | DC-5 | 1.5 | 1.3 | 40dB@6MHz |
KLPF-DC-7MHz-LC | DC-7 | 1.5 | 1.3 | 40dB@8.4MHz |
KLPF-DC-10MHz-LC | DC-10 | 1.5 | 1.3 | 40dB@12MHz |
KLPF-DC-15MHz-LC | DC-15 | 1.5 | 1.3 | 40dB@18MHz |
KLPF-DC-20MHz-LC | DC-20 | 1.5 | 1.3 | 40dB@24MHz |
KLPF-DC-25MHz-LC | DC-25 | 1.5 | 1.3 | 40dB@30MHz |
KLPF-DC-30MHz-LC | DC-30 | 1.5 | 1.3 | 40dB@36MHz |
KLPF-DC-35MHz-LC | DC-35 | 1.5 | 1.3 | 40dB@42MHz |
KLPF-DC-40MHz-LC | DC-40 | 1.5 | 1.3 | 40dB@48MHz |
KLPF-DC-50MHz-LC | DC-50 | 1.5 | 1.3 | 40dB@60MHz |
KLPF-DC-60MHz-LC | DC-60 | 1.5 | 1.3 | 40dB@72MHz |
KLPF-DC-70MHz-LC | DC-70 | 1.5 | 1.3 | 40dB@84MHz |
KLPF-DC-80MHz-LC | DC-80 | 1.5 | 1.3 | 40dB@96MHz |
KLPF-DC-90MHz-LC | DC-90 | 1.5 | 1.3 | 40dB@108MHz |
KLPF-DC-100MHz-LC | DC-100 | 1.5 | 1.3 | 40dB@120MHz |
KLPF-DC-120MHz-LC | DC-120 | 1.5 | 1.3 | 40dB@144MHz |
KLPF-DC-140MHz-LC | DC-140 | 1.5 | 1.3 | 40dB@168MHz |
KLPF-DC-160MHz-LC | DC-160 | 1.5 | 1.3 | 40dB@192MHz |
KLPF-DC-180MHz-LC | DC-180 | 1.5 | 1.3 | 40dB@216MHz |
KLPF-DC-200MHz-LC | DC-200 | 1.5 | 1.3 | 40dB@240MHz |
KLPF-DC-230MHz-LC | DC-230 | 1.5 | 1.3 | 40dB@276MHz |
KLPF-DC-260MHz-LC | DC-260 | 1.5 | 1.3 | 40dB@312MHz |
KLPF-DC-300MHz-LC | DC-300 | 1.5 | 1.3 | 40dB@360MHz |
KLPF-DC-320MHz-LC | DC-320 | 1.5 | 1.3 | 40dB@384MHz |
KLPF-DC-340MHz-LC | DC-340 | 1.5 | 1.3 | 40dB@408MHz |
KLPF-DC-360MHz-LC | DC-360 | 1.5 | 1.3 | 40dB@432MHz |
KLPF-DC-380MHz-LC | DC-380 | 1.5 | 1.3 | 40dB@456MHz |
KLPF-DC-410MHz-LC | DC-410 | 1.5 | 1.3 | 40dB@492MHz |
KLPF-DC-450MHz-LC | DC-450 | 1.5 | 1.3 | 40dB@540MHz |
KLPF-DC-500MHz-LC | DC-500 | 1.5 | 1.3 | 40dB@600MHz |
KLPF-DC-550MHz-LC | DC-550 | 1.5 | 1.5 | 40dB@660MHz |
KLPF-DC-600MHz-LC | DC-600 | 1.5 | 1.5 | 40dB@720MHz |
KLPF-DC-650MHz-LC | DC-650 | 1.5 | 1.5 | 40dB@780MHz |
KLPF-DC-700MHz-LC | DC-700 | 1.5 | 1.5 | 40dB@840MHz |
KLPF-DC-750MHz-LC | DC-750 | 1.5 | 1.5 | 40dB@900MHz |
KLPF-DC-825MHz-LC | DC-825 | 1.5 | 1.5 | 40dB@990MHz |
KLPF-DC-880MHz-LC | DC-880 | 1.5 | 1.5 | 40dB@1050MHz |
KLPF-DC-915MHz-LC | DC-915 | 1.5 | 1.5 | 40dB@1090MHz |
KLPF-DC-960MHz-LC | DC-960 | 1.5 | 1.5 | 40dB@1150MHz |
KLPF-DC-1050MHz-LC | DC-1050 | 2 | 1.5 | 40dB@1260MHz |
KLPF-DC-1100MHz-LC | DC-1100 | 2 | 1.5 | 40dB@1320MHz |
KLPF-DC-1200MHz-LC | DC-1200 | 2 | 1.5 | 40dB@1440MHz |
KLPF-DC-1300MHz-LC | DC-1300 | 2 | 1.5 | 40dB@1560MHz |
KLPF-DC-1400MHz-LC | DC-1400 | 2 | 1.5 | 40dB@1680MHz |
KLPF-DC-1500MHz-LC | DC-1500 | 2 | 1.5 | 40dB@1800MHz |
KLPF-DC-1600MHz-LC | DC-1600 | 2 | 1.5 | 40dB@1920MHz |
KLPF-DC-1700MHz-LC | DC-1700 | 2 | 1.5 | 40dB@2040MHz |
KLPF-DC-1800MHz-LC | DC-1800 | 2 | 1.5 | 40dB@2160MHz |
KLPF-DC-1900MHz-LC | DC-1900 | 2 | 1.5 | 40dB@2280MHz |
KLPF-DC-2000MHz-LC | DC-2000 | 2 | 1.5 | 40dB@2400MHz |
KLPF-DC-2100MHz-LC | DC-2100 | 2 | 1.5 | 40dB@2520MHz |
KLPF-DC-2200MHz-LC | DC-2200 | 2 | 1.5 | 40dB@2640MHz |
KLPF-DC-2300MHz-LC | DC-2300 | 2 | 1.5 | 40dB@2760MHz |
KLPF-DC-2400MHz-LC | DC-2400 | 2 | 1.5 | 40dB@2880MHz |
KLPF-DC-2500MHz-LC | DC-2500 | 2 | 1.5 | 40dB@3000MHz |
KLPF-DC-2700MHz-LC | DC-2700 | 2 | 1.5 | 40dB@3240MHz |
KLPF-DC-2900MHz-LC | DC-2900 | 2 | 1.5 | 40dB@3480MHz |
KLPF-DC-3100MHz-LC | DC-3100 | 2 | 1.5 | 40dB@3720MHz |
KLPF-DC-3400MHz-LC | DC-3400 | 2 | 1.5 | 40dB@4080MHz |
KLPF-DC-3700MHz-LC | DC-3700 | 2 | 1.5 | 40dB@4440MHz |
KLPF-DC-4200MHz-LC | DC-4200 | 2 | 1.5 | 40dB@5040MHz |
KLPF-DC-5000MHz-LC | DC-5000 | 2 | 1.5 | 40dB@6000MHz |
KLPF-DC-5900MHz-LC | DC-5900 | 2 | 1.5 | 40dB@7080MHz |
